FREE SHIPPING LANCER 23 x 23 DROP IN 6 VALVE MODEL ICD 2300 DISPENSER
The ICD 2300 is designed using the highest quality materials
and proven technology providing our customers with consistent
drink quality.

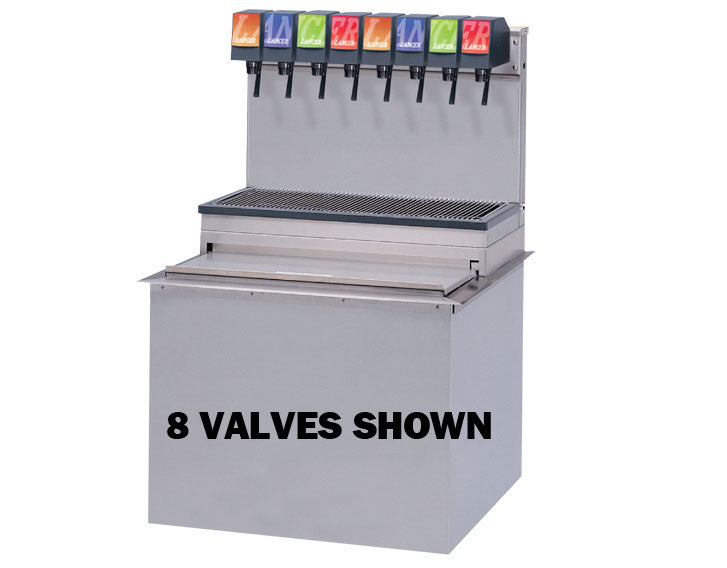

> Available with six or eight valves
> Stainless steel construction with sealed in cold plate
> 3/4” drain with strainer to prevent ice blockage
> Stainless steel flooded soda manifold and multiple plain water configuration
> Ice bin insulated with CFC free structural foam
> Tower designed with removable splash plate and drip tray for easy cleaning
> Dispenser can accommodate any number of non-carbonated drinks
> Sliding bin lid with electric valve lock out
> Optional top merchandiser and back marquee feature lighted graphics for
maximum impact
> Dispensing Solutions that Pour More

SPECIFICATIONS

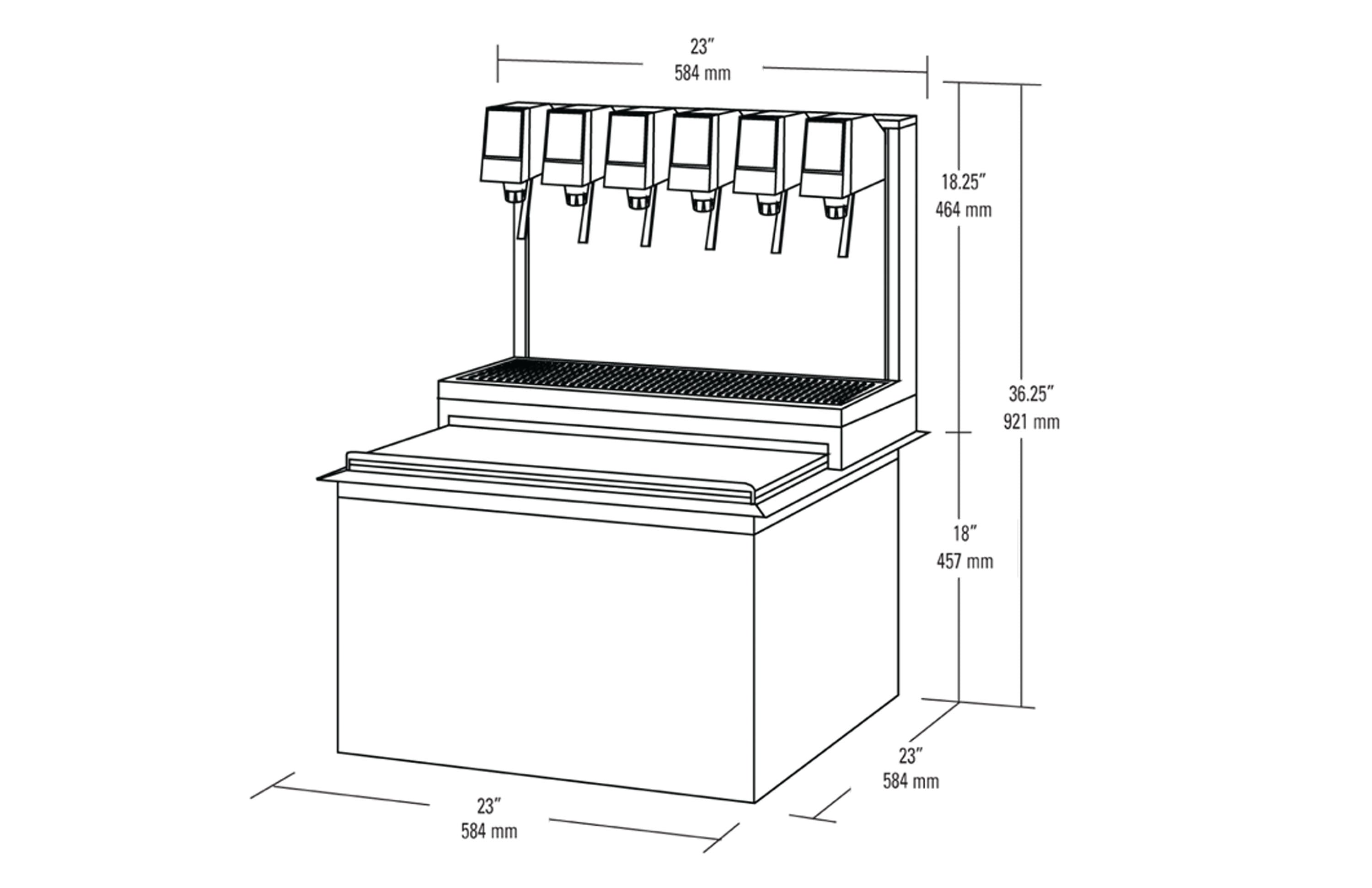

DIMENSIONS
Height: 36.25” (921 mm)
Width: 23” (584 mm)
Depth: 23” (584 mm)
COUNTER CUT-OUT
Width: 23.25” (591 mm)
Depth: 23.25” (591 mm)
ELECTRICAL
24V/60Hz
WEIGHT
Operating: 270 lbs (122 kg)
Shipping: 195 lbs (88 kg)
ICE
Capacity: 100 lbs (45 kg)
FITTINGS
Soda Inlets: 3/8” male barb
Syrup Inlets: 3/8” male barb
VA LVES
LEV® and other valves available upon request
FLEX MANIFOLD CONFIGURA TION
6-valve 3-2-1
8-valve 3-1-1-3
KEY LOCK SWITCH
DRA W PER FORMANCE
Number of Drinks Below 40°F
75°F (24°C) Ambient Temperature
12 oz/12 drinks per minute
24 oz/7 drinks per minute
90°F (32°C) Ambient Temperature
12 oz/8 drinks per minute
24 oz/5 drinks per minute
(Units can supply drinks under 40°F at rated draw
performance continuously as long
