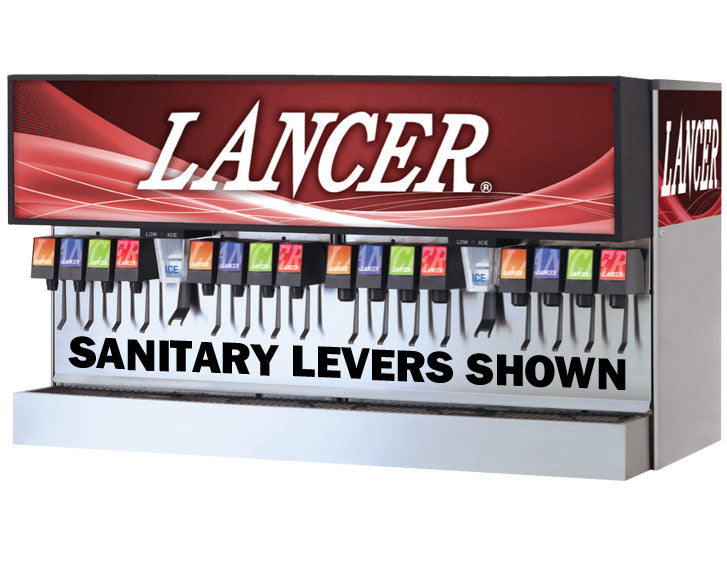

FREE SHIPPING LANCER 60” WIDE 16 DRINK ICE COMBO IBD 4500-60 DISPENSER, SANITARY LEVER
The IBD is Lancer’s #1 selling self-serve dispenser. Hard plumbed
syrup and water lines deliver excellent icy cold drinks. Versatile
valve configurations and a portion control option allow for easy
beverage cost monitoring. Topped with a compelling wraparound
display, the IBD is a favorite of our customers.

> Illuminated interchangeable front graphics, 2 standard fluorescent 15 watt light bulbs
> High capacity ice storage bin
> High capacity drip tray to handle customer ice and beverage overfill helps avoid safety
hazards and drink station cleanup from spills
> Unique hex drive ice agitation and dispense drive system for trouble free operation
and long service life
> Multiple valve configurations available for self-serve and portion control operation
to control beverage costs
> Stainless steel construction; exterior and interior
> Fully insulated storage bin and drip tray controls condensation and helps avoid
moisture related safety hazards
> Front and rear plumbing access for installation flexibility
> Dispensing Solutions that Pour More

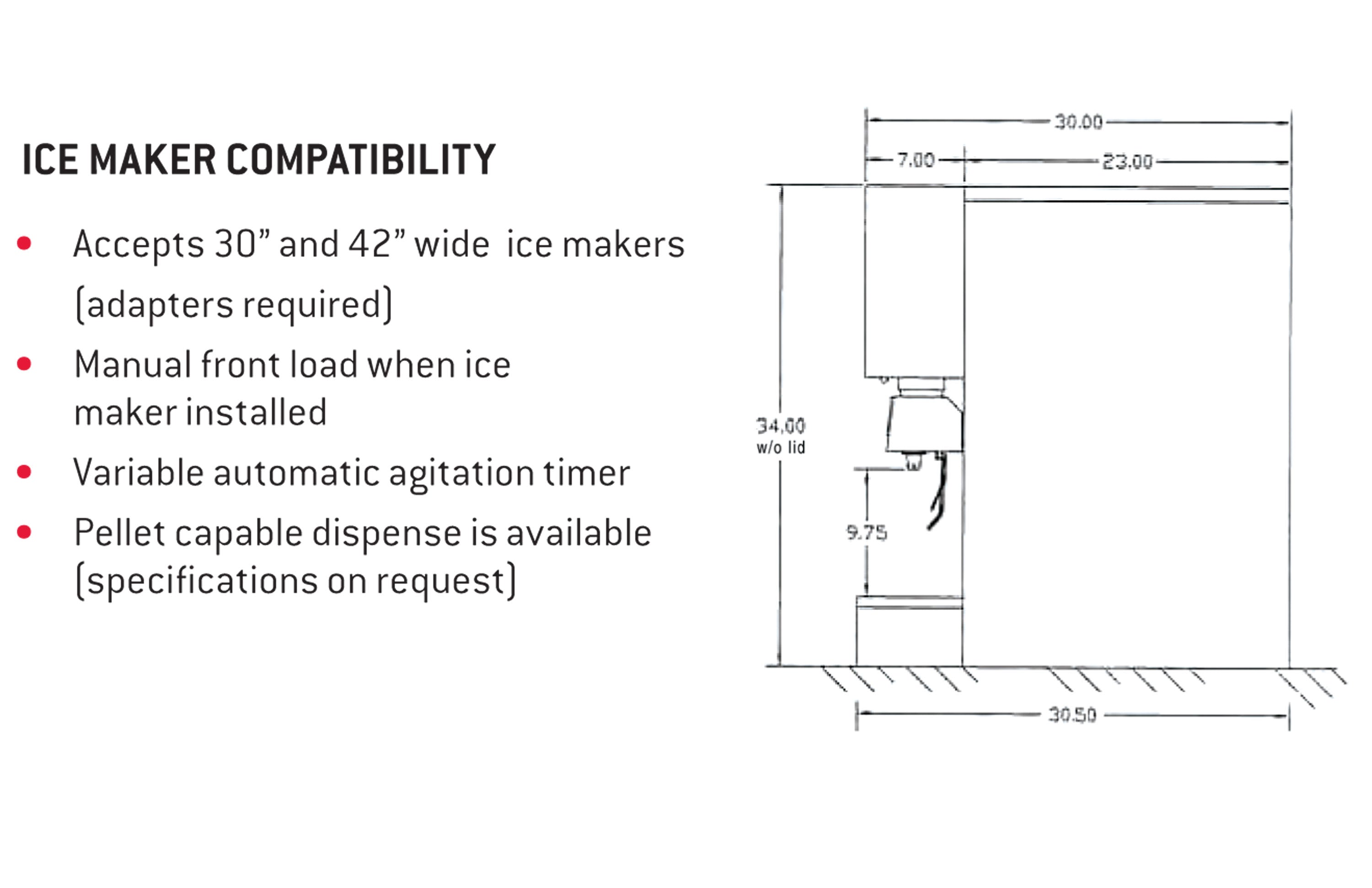

SPECIFICATIONS

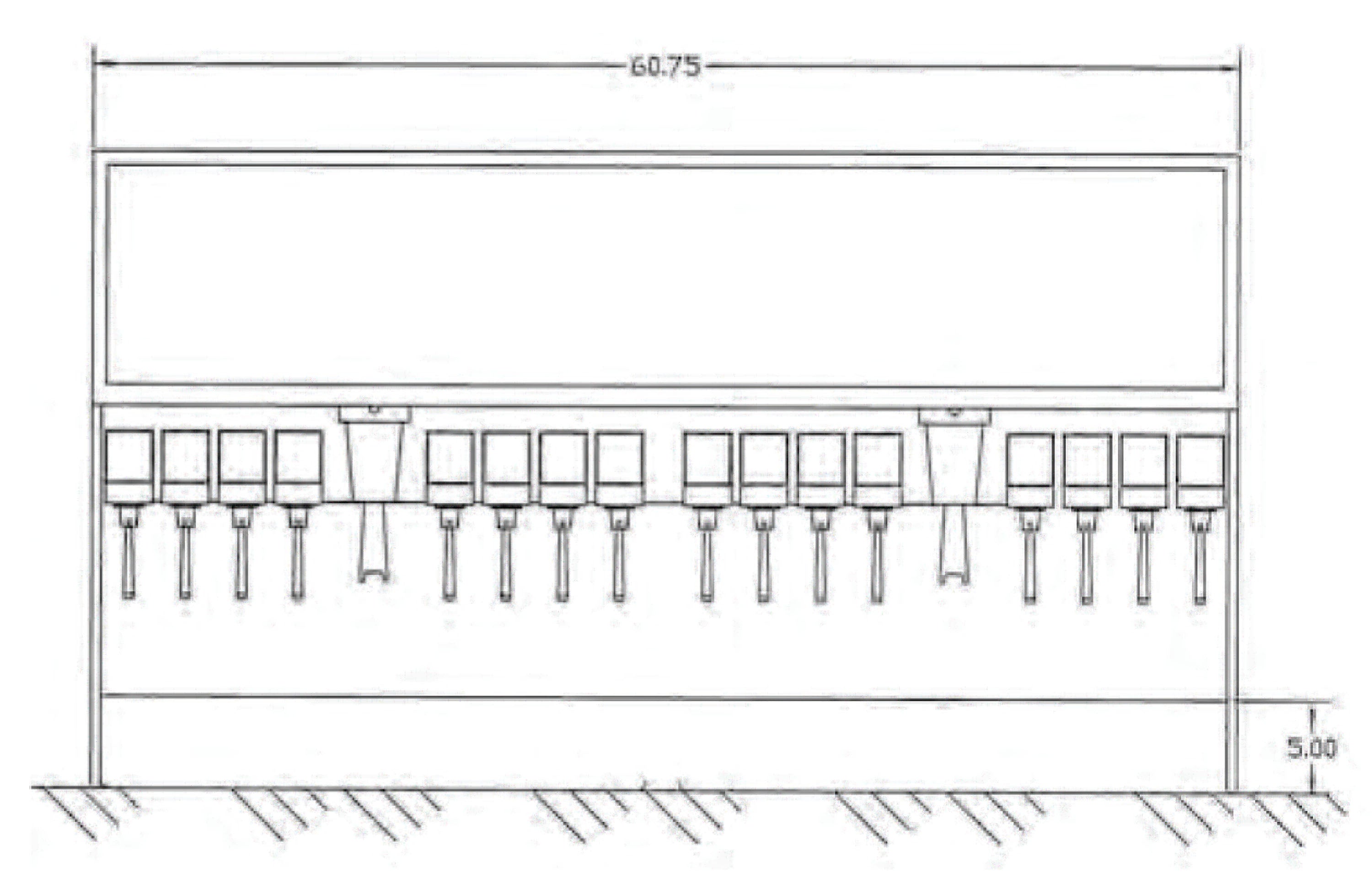

DIMENSIONS
Height: 35.375” (899 mm)
Height with riser 40.625” (1032 mm)
Width: 60.75” (1543 mm)
Depth: 30.5” (775 mm)
SPACE REQUIRED
Width: 62.75” (1594 mm)
Depth: 31.5” (800.1 mm)
Height: Allow sufficient clearance for
manually filling with ice or refer to ice maker
recommendation for top clearance.
ELECTRICAL
115V/60Hz, 6AMPs
230V/50Hz, 3AMPs
WEIGHT
With Ice: 760 lbs (345 kg)
Shipping: 460 lbs (209 kg)
ICE
Capacity: 500 lbs (227 kg)
Dispensable: 350 lbs (159 kg)
FITTINGS
Soda Inlets: 3/8” male barb
Syrup Inlets: 3/8” male barb
VALVE OPTIONS
LEV and other valves available upon request
FLEX MOLD CONFIGURATION
3-1-1-3-3-1-1-3
KEY LOCK SWITCH
