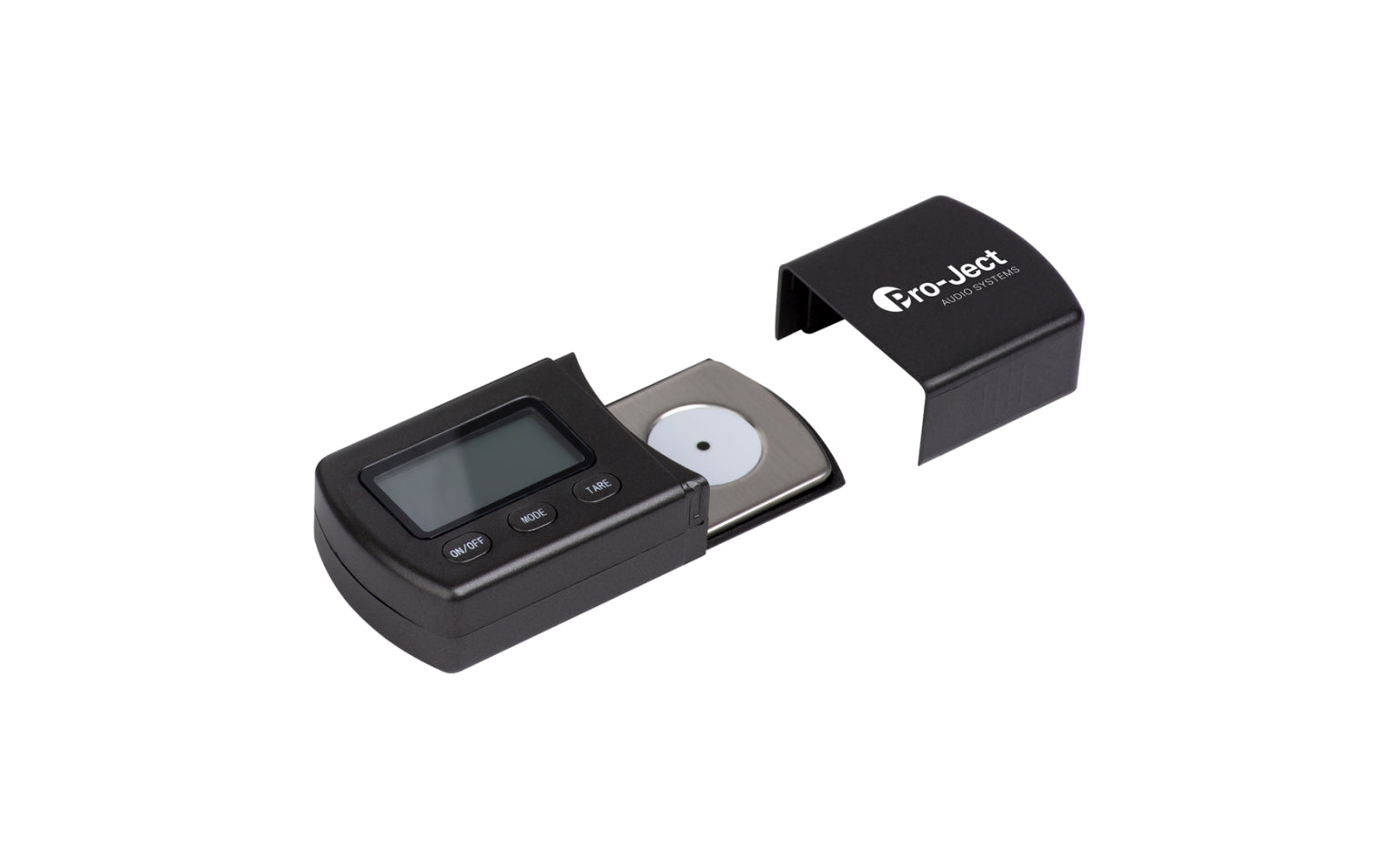

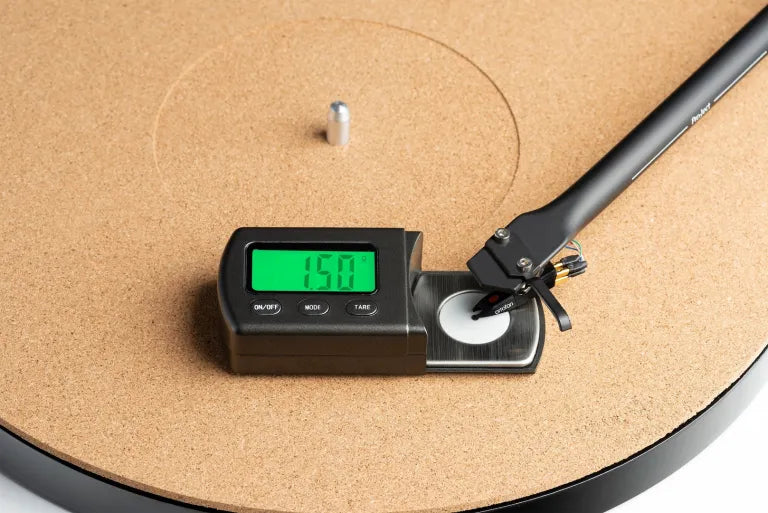

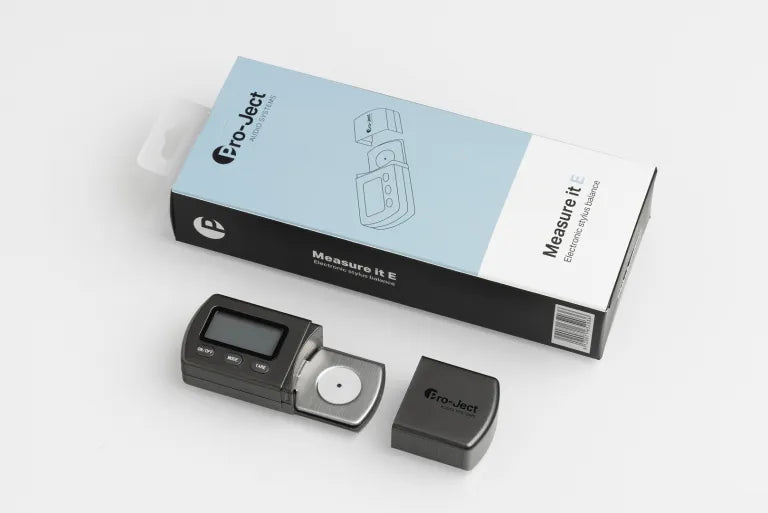

The Measure it E Stylus Tracking Force Gauge is a highly accurate electronic balance that is designed for measuring stylus tracking forces up to 5.0 grams in 0.01 gram increments. Each Measure it E can easily be calibrated using the supplied calibration weight and by pushing a button. Whenever in doubt about the actual amount of pressure on the diamond tip the 4 digit display of this smart tool will help. Armed with precise information about tracking force, your stylus tip wear can be significantly reduced.
| Capacity | 0 - 5g |
| Variance | ±0,01g |
| Weighting modes | gram (1g = 10mN), ounce (oz), pennyweight (dwt) & carat (ct) |
| Display | 4 digit LCD with backlight |
| Calibration | auto calibration using a 5g weight |
| Auto off | 30 seconds off |
| Replacement battery | 2 x LR43 (AG12) button cells, 1,5V |
| Operating temperature | +10 - +30° C (50 - 86 degrees Fahrenheit) |
| Dimensions (W x H x D) | 96 x 21 x 43mm |
| Weight | 49g |
