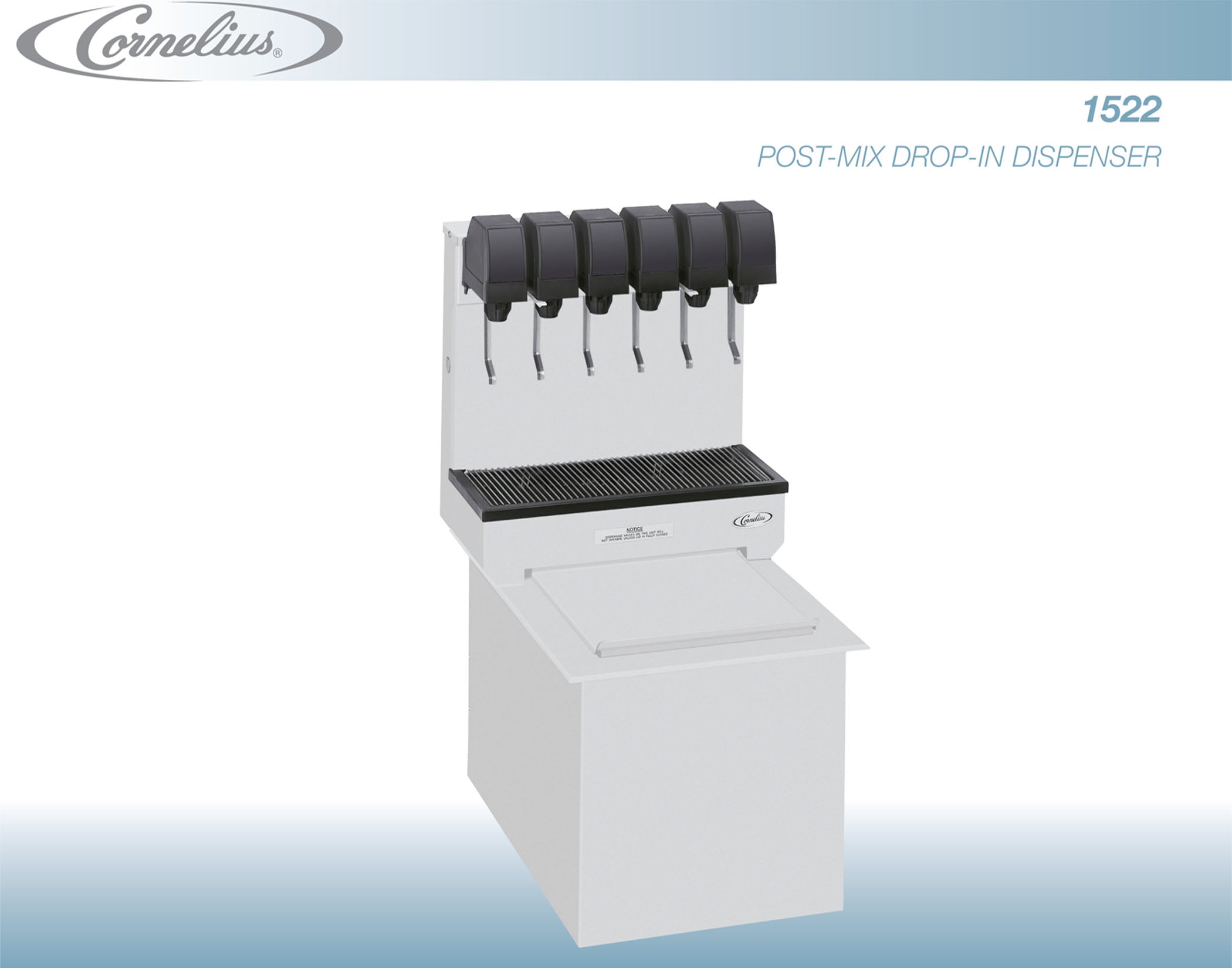

FREE SHIPPING CORNELIUS 15 x 22 DROP IN DISPENSER 5 & 6 UF-1 VALVES, HI PERFORMANCE & CABINET STAND
The 1522 is designed using the highest quality materials
and proven technology providing our customers with consistent
drink quality.

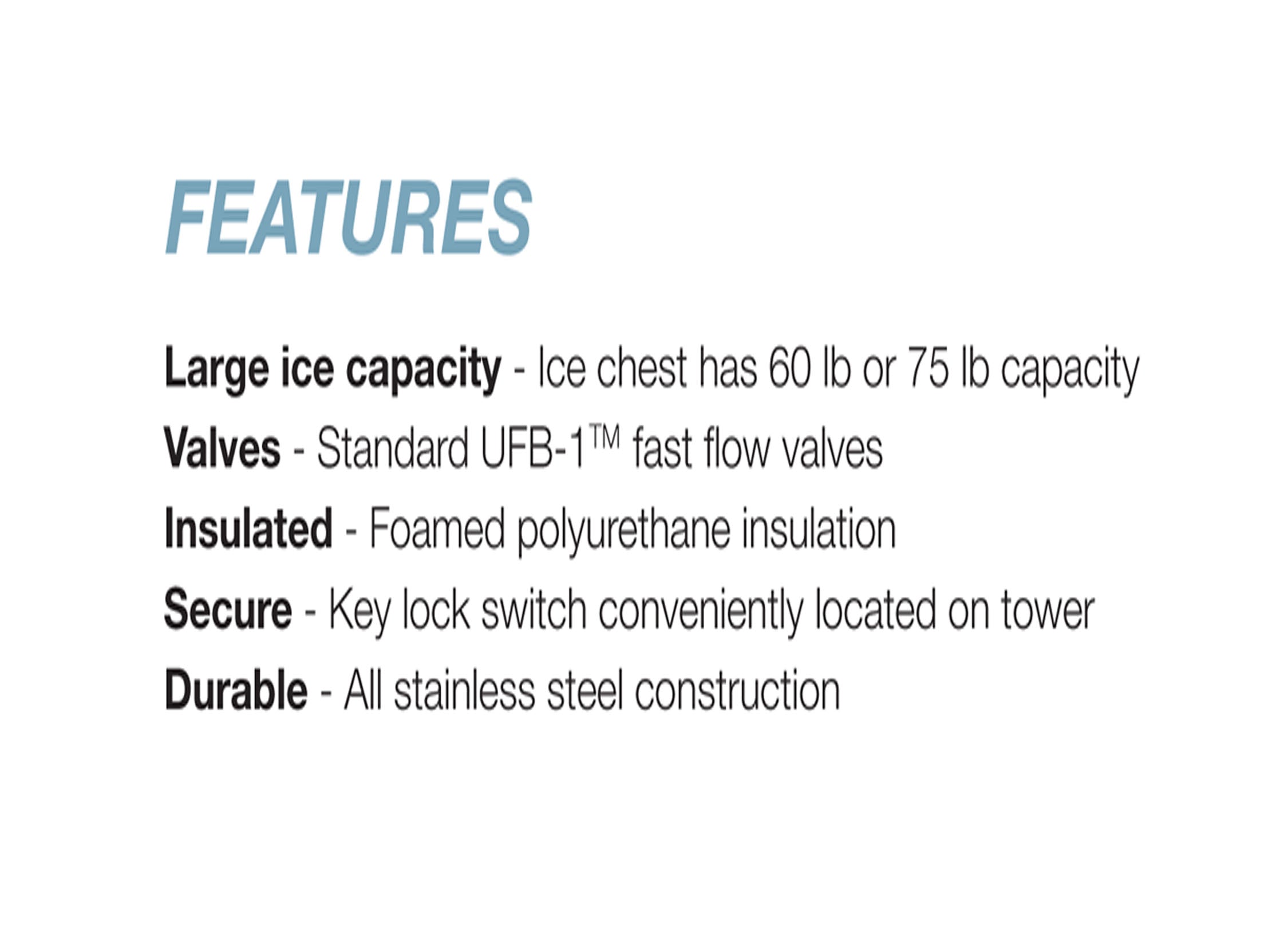

> Available with five & six valves
> Stainless steel construction with sealed in cold plate
> 3/4” drain with strainer to prevent ice blockage
> Stainless steel flooded soda manifold and multiple plain water configuration
> Ice bin insulated with CFC free structural foam
> Tower designed with removable splash plate and drip tray for easy cleaning
> Optional top merchandiser and back marquee feature lighted graphics for
maximum impact

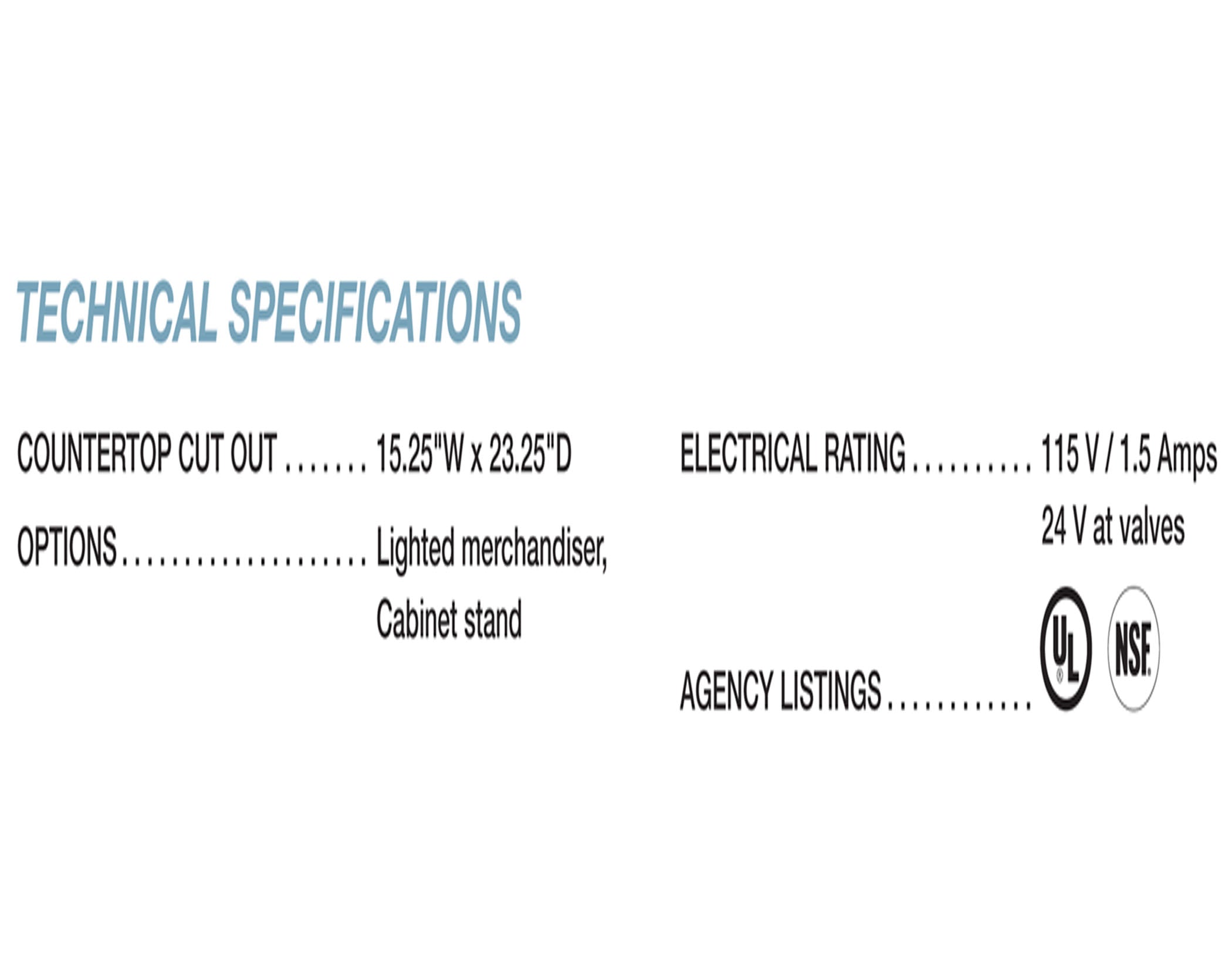

SPECIFICATIONS

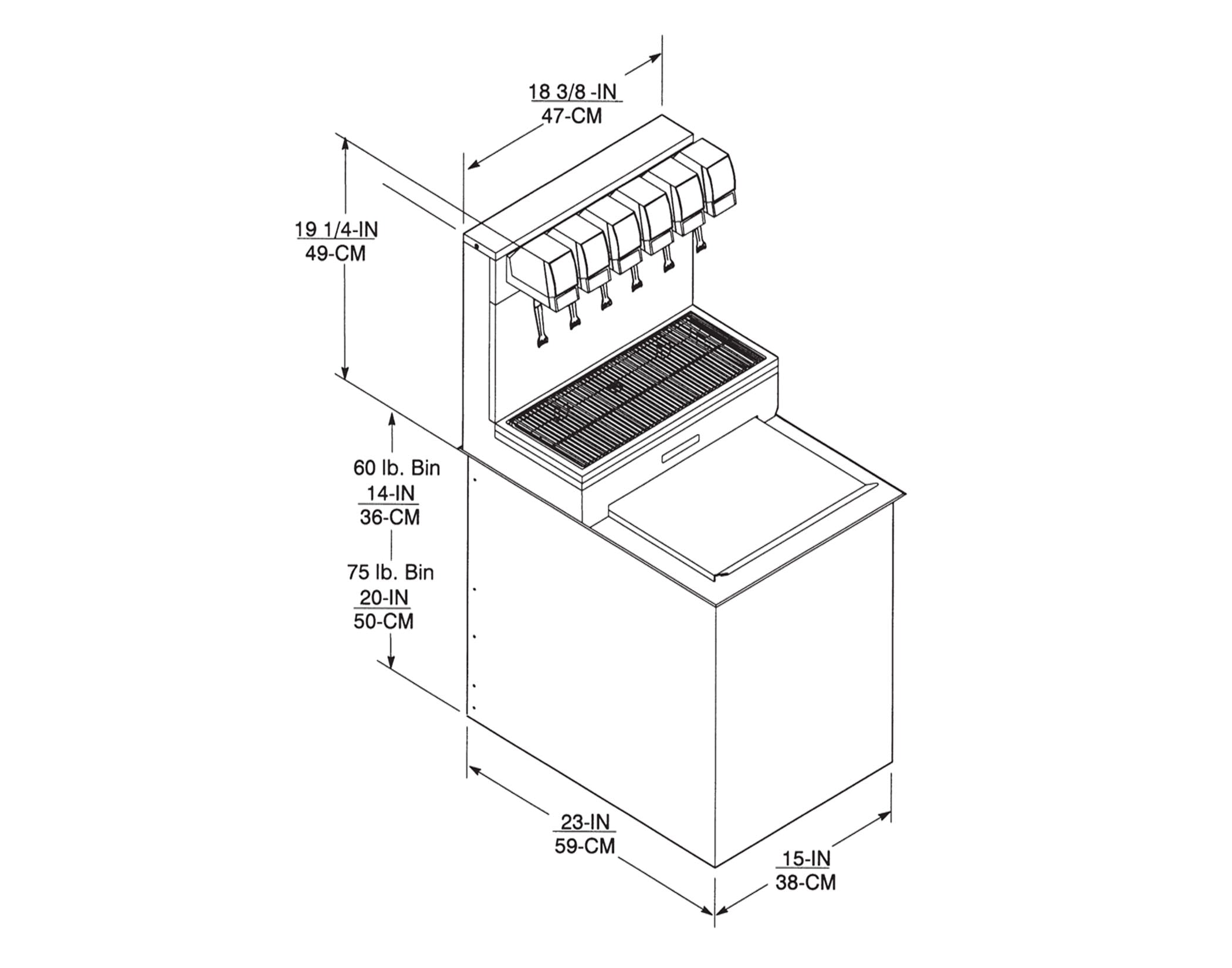

DIMENSIONS
Height: 33.375” (848 mm)
Width: 15” (381 mm)
Depth: 23” (584 mm)
COUNTER CUT-OUT
Width: 15.25” (387 mm)
Depth: 23.25” (591 mm)
ELECTRICAL
115V/60Hz
WEIGHT
Operating: 166 lbs (75 kg)
Shipping: 145 lbs (65.77 kg)
ICE
Capacity: 60 & 75 lbs (27.2 kg)
FITTINGS
Soda Inlets: 3/8” male barb
Syrup Inlets: 3/8” male barb
FLEX MANIFOLD CONFIGURATION
6 valve 3-2-1
KEY LOCK SWITCH
DRAW PERFORMANCE
Number of Drinks Below 40°F
75°F (24°C) Ambient Temperature
12oz / 6 drinks per minute
90°F (32°C) Ambient Temperature
12 oz/4 drinks per minute
