FREE SHIPPING LANCER 22” WIDE 4-8 DRINK “FS” FLAVOR SELECT, ICE COMBO WITH FLAVOR SHOT, MODEL FS22
The FS22 offers over 50 unique flavor combinations, and the
interactive self-serve dispensing is entertaining with eyecatching
“Lite Touch” buttons. Featuring state-of-the-art cold
carbonation technology the FS provides a consistently pleasing
drink experience. Enhanced ice dispensing capability allows
customers to dispense cube or cubelet ice, on demand.

> Cold carbonation for consistently better drink quality
> Up to eight brands for over 50 flavor possibilities
> Add up to six bonus flavors to create an exceptional drink experience

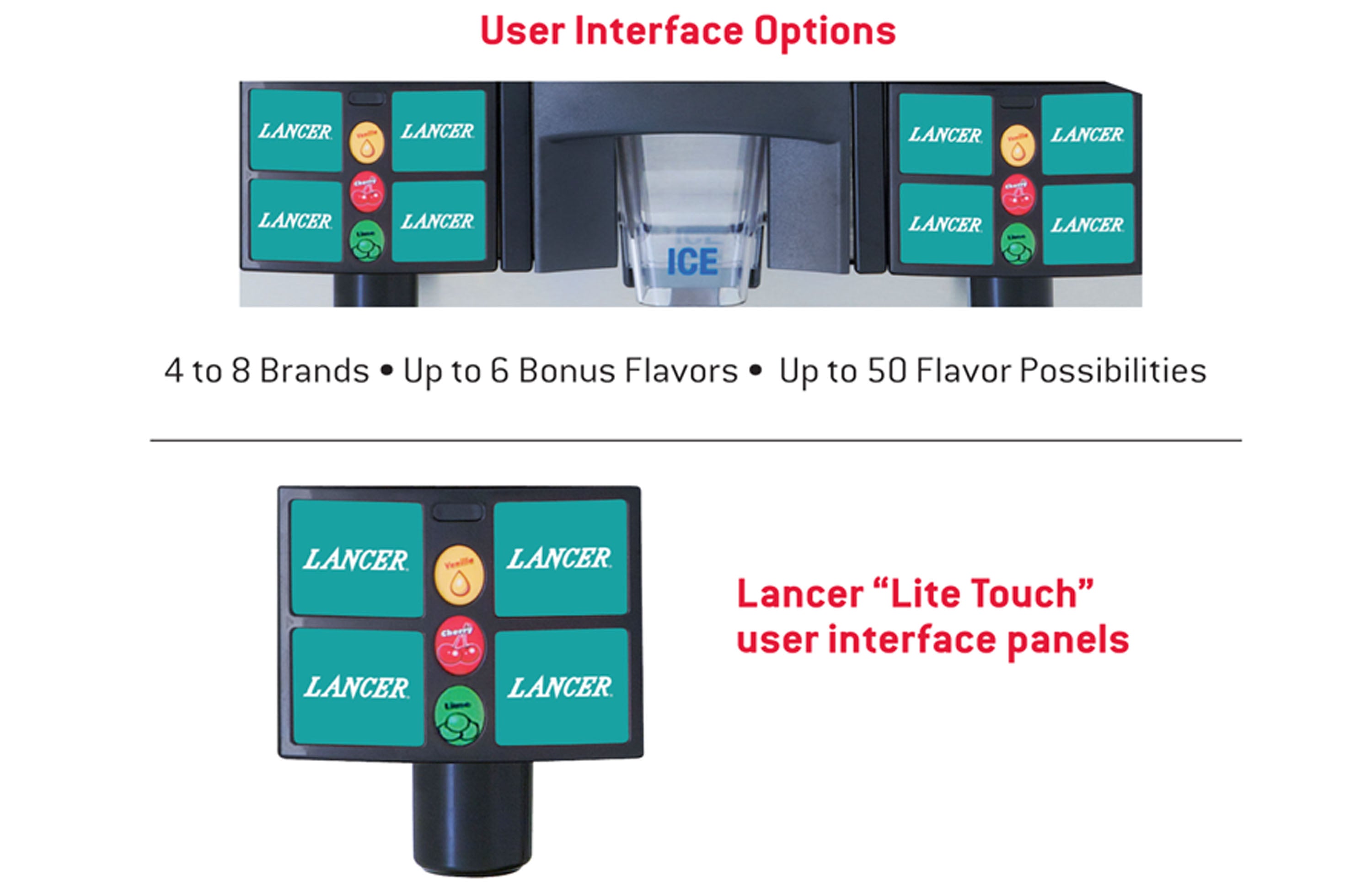

> “Lite Touch” brand light show draws attention to your more profitable fountain section
> A space-saving 22” footprint
> “Air Mix” nozzles blend syrup and water in midair for consistent drink delivery
> Illuminated, easily interchangeable merchandiser
> Large capacity, removable drip tray and cup rest
> Three ice bin fill options: ice maker production, manual loading, or both
> Cubelet ice capable dispense is available; specifications on request
> Dosing or blending available for bonus flavors
> Dispensing Solutions that Pour More

SPECIFICATIONS

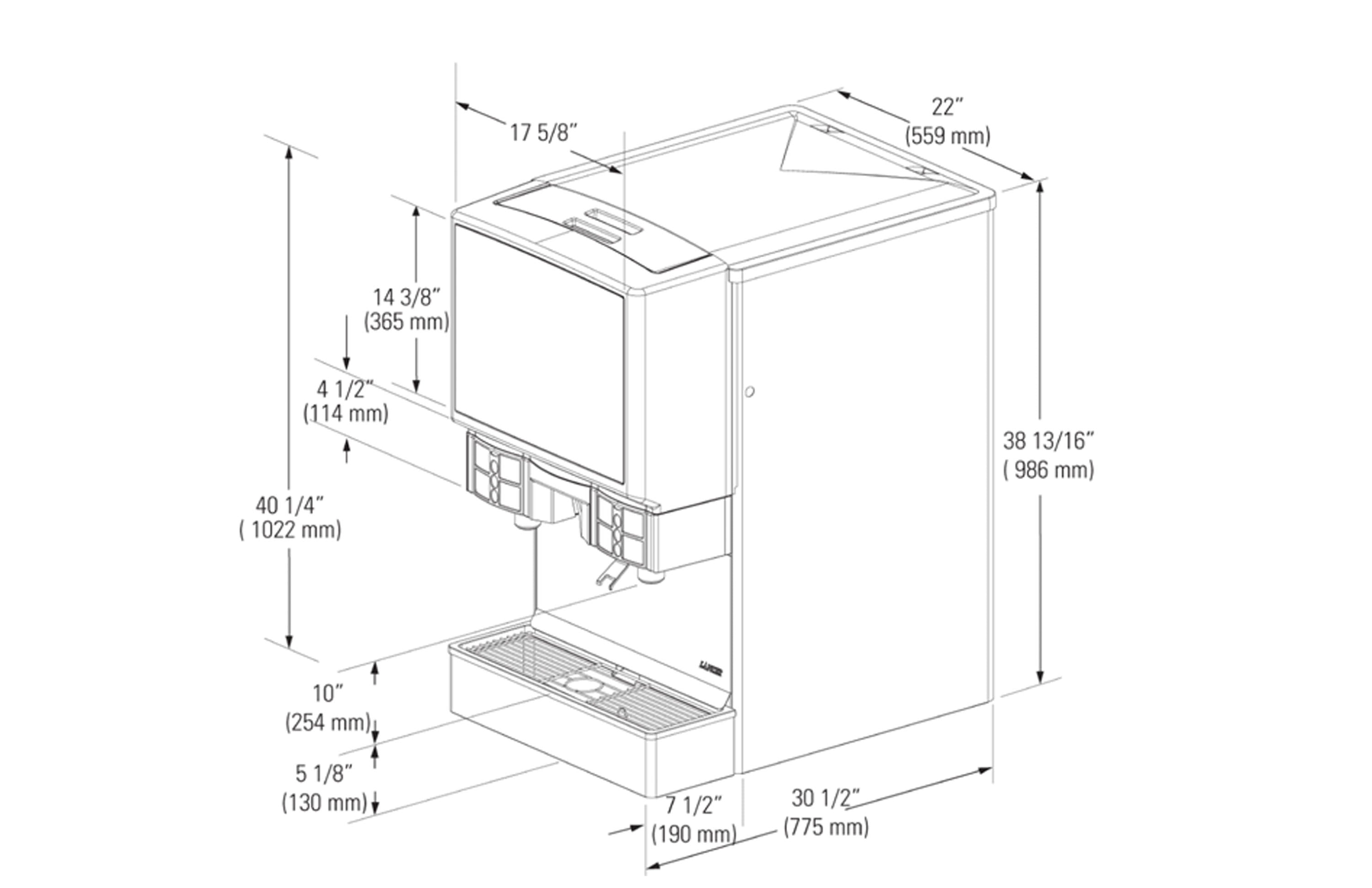

DIMENSIONS
Height: 40.25” (1022 mm)
Width: 22” (558 mm)
Depth: 30.5” (775 mm)
SPACE REQUIRED
Width: 24” (558.8 mm)
Depth: 31.5” (800.1 mm)
Height: Allow sufficient clearance for
manually filling with ice or refer to ice maker
recommendation for top clearance.
ELECTRICAL
115V/60Hz, 7AMPs
230V/50Hz, 3.5AMPs
WEIGHT
Without Ice: 280 lbs
With Ice: 480 lbs
Shipping: 310 lbs
ICE
Capacity: 200 lbs
Dispensable: 170 lbs
FITTINGS
Soda Inlets: 3/8” barb
Syrup Inlets: 3/8” barb
WATER
Filtered water 50 psi min
Lancer Flow Control Valves (LFCV)
Key lock switch for valves
Field configurable
Front connection for products
Access to floor drain suggested
Parts warranty
