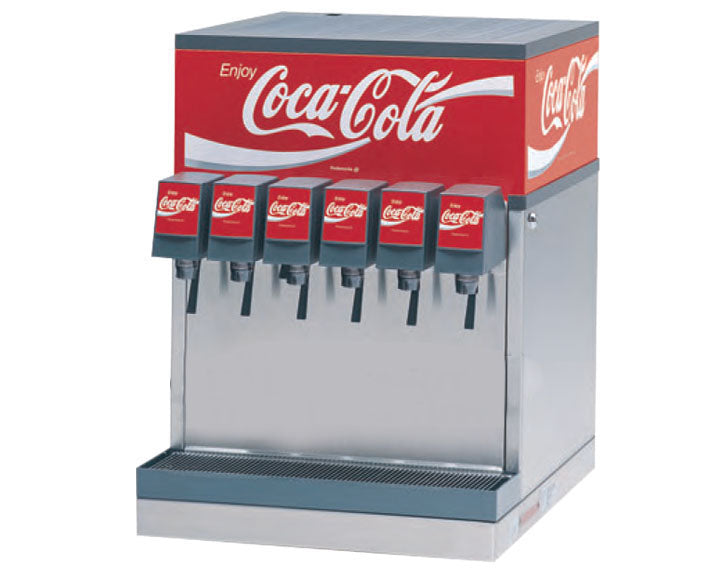

FREE SHIPPING LANCER COUNTER ELECTRIC HI PERFORMANCE 6 VALVE MODEL 1500 DISPENSER
The CED 1500 is designed using the highest quality materials
and proven technology providing our customers with consistent
drink quality.

> Stainless steel cabinet, water bath, product lines, and splash plate;
removable refrigeration deck
> Available with 5 or 6 post-mix dispensing valves
> All valves can be serviced independently
> Insulation is CFC free, 0 GWP, structural foam
> All installation from front of unit
> CFC free, R134A refrigerant
> 1/3 hp compressor, 30 lb ice bank, high capacity flooded manifold
> Flex manifold configuration for multiple non carbonated drinks
> Dispensing Solutions that Pour More

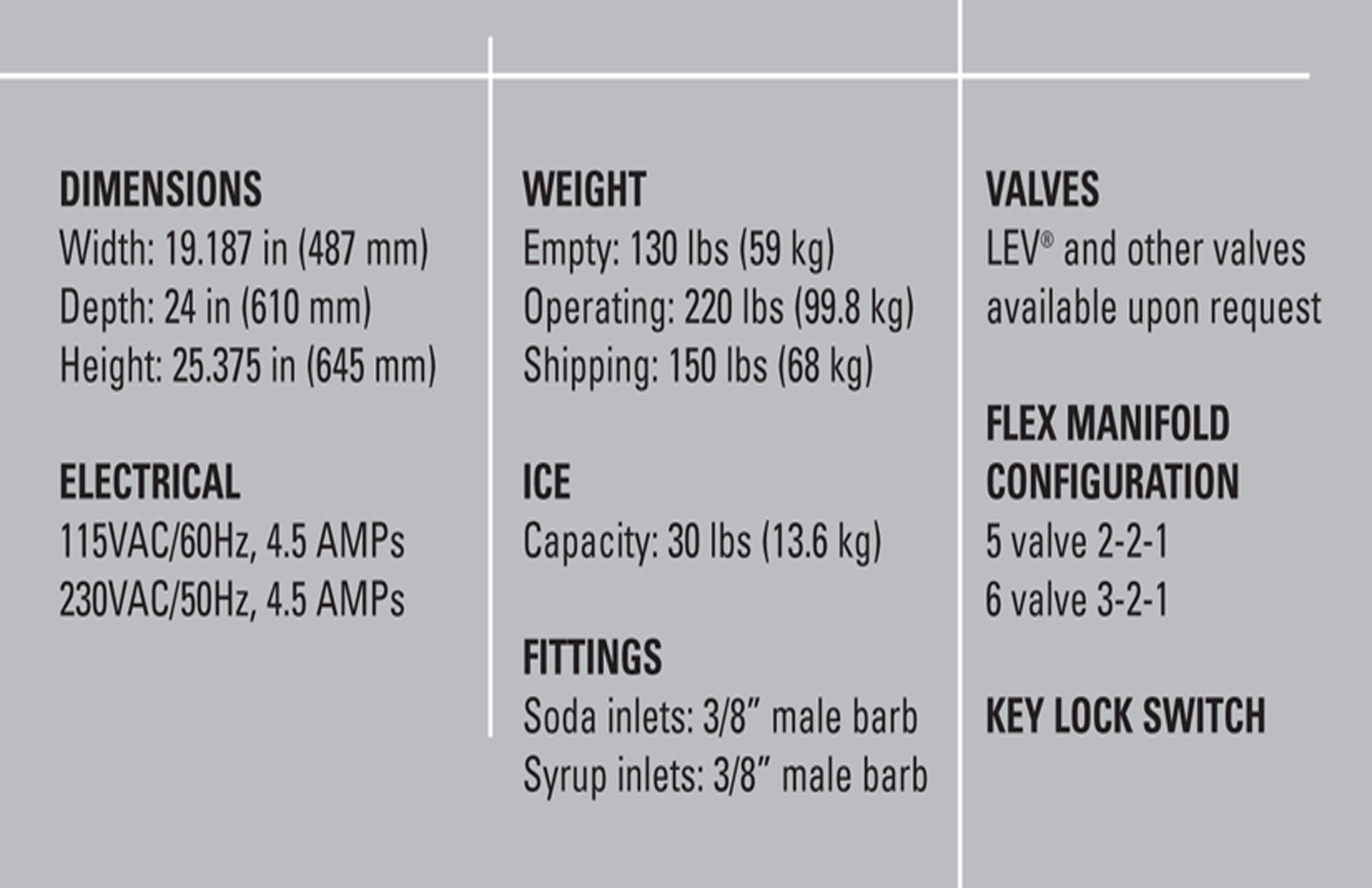

SPECIFICATIONS
DIMENSIONS
Height: 25.375” (645 mm)
Width: 19.187” (487 mm)
Depth: 24” (610 mm)
ELECTRICAL
115V/60Hz, 7.8 AMPs
230V/50Hz, 4.5 AMPs
WEIGHT
Empty: 130 lbs (59 kg)
Operating: 230 lbs (104 kg)
Shipping: 170 lbs (77 kg)
ICE
Capacity: 30 lbs (13.6 kg)
FITTINGS
Soda Inlets: 3/8” male barb
Syrup Inlets: 3/8” male barb
VALVES
LEV® and other valves available upon request
FLEX MANIFOLD CONFIGURATION
6 valve 3-2-1
KEY LOCK SWITCH
COMPRESSOR
1/3 hp
MOTORS
Agitator: 25 w
Condenser fan: 9 w
ICE BANK CONTROL
Lancer Electronic Ice Bank Control
TRANSFORMER
24 V Secondary
WATER
Capacity: 12 gal (45L)
