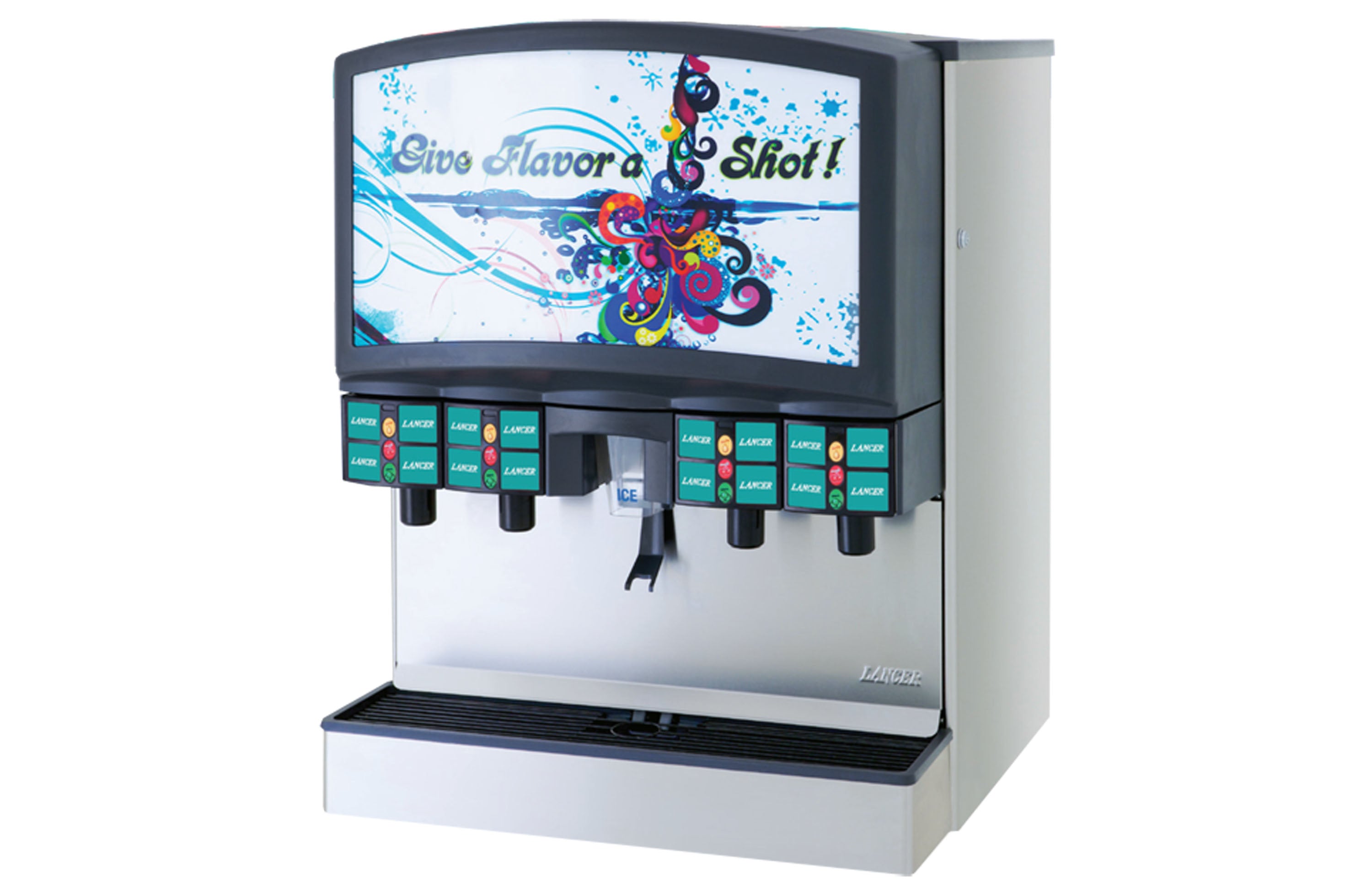

FREE SHIPPING LANCER 30” WIDE 8-16 DRINK “FS” FLAVOR SELECT, ICE COMBO WITH FLAVOR SHOT
The FS30 offers over 100 unique flavor combinations, and the interactive
self-serve dispensing is entertaining with eye-catching “Lite Touch” buttons.
Featuring state-of-the-art cold carbonation technology the FS provides a
consistently pleasing drink experience. Enhanced ice dispensing capability
allows customers to dispense cube or cubelet ice, on demand.

> Cold carbonation for consistently better drink quality
> Up to 16 brands for over 100 flavor possibilities
> Add up to 12 bonus flavors to create an exceptional drink experience

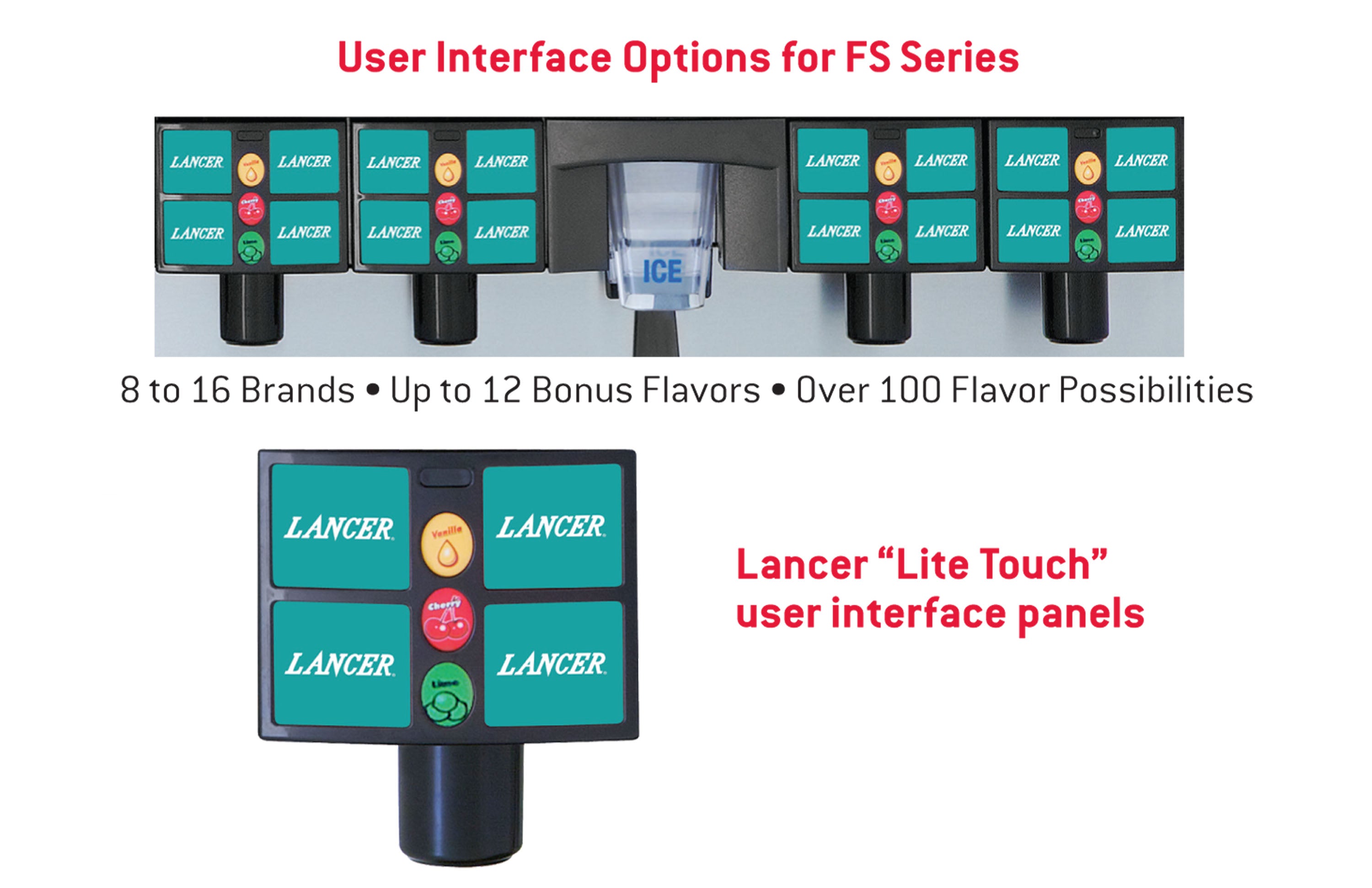

> “Lite Touch” brand light show draws attention to your more profitable fountain section
> Three ice bin fill options: ice maker production, manual loading, or both
> Fits in current 30'' IBD footprint
> “Air Mix” nozzles blend syrup and water in midair for consistent drink delivery
> Illuminated easily interchangeable merchandiser
> Large capacity, removable drip tray and cup rest
> Chewable ice dispensing is available; specifications on request
> Dosing or blending available for bonus flavors
> Dispensing Solutions that Pour More

SPECIFICATIONS

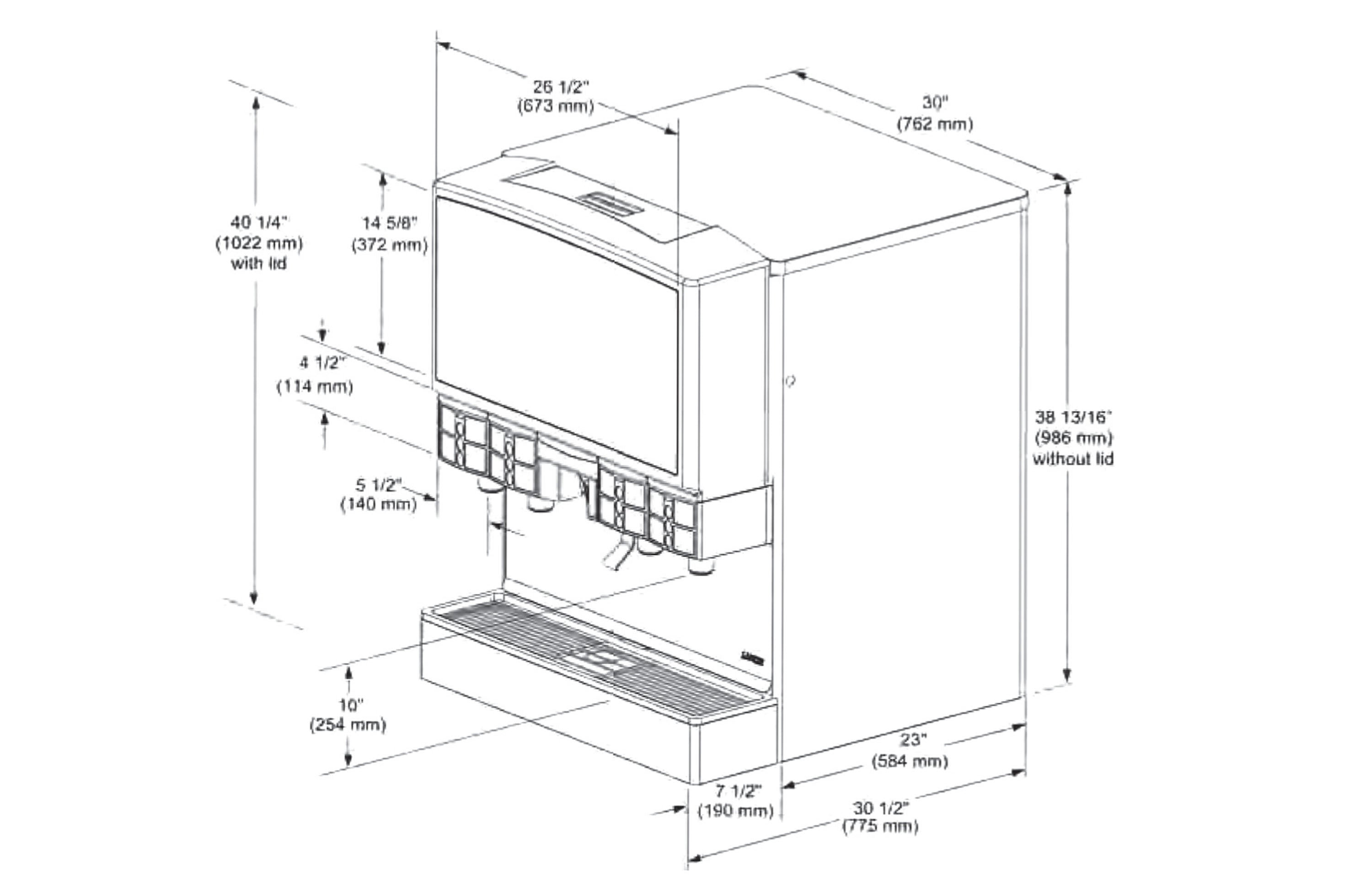

DIMENSIONS
Height: 40.25’’ (899 mm)
Width: 30'' (762 mm)
Depth: 30.5'' (775 mm)
SPACE REQUIRED
Width: 32” (812.8 mm)
Depth: 31.5” (800.1 mm)
Height: Allow sufficient clearance for
manually filling with ice or refer to ice maker
recommendation for top clearance.
ELECTRICAL
115V/60Hz, 7AMPs
WEIGHT
Without ice: 320 lbs (145 kg)
With ice: 610 lbs (281 kg)
Shipping: 356 lbs (161 kg)
ICE
Capacity: 290 lbs (132 kg)
Dispensable: 215 lbs (98 kg)
FITTINGS
Soda inlets: 3/8'' (9.5 mm ) barb
Syrup inlets: 3/8’’ (9.5 mm ) barb
Water
Filtered water 50 psi min
Lancer Flow Control Valves (LFCV)
Key lock switch for valves
Field configurable
Front connection for products
Access to floor drain suggested
Parts warranty
