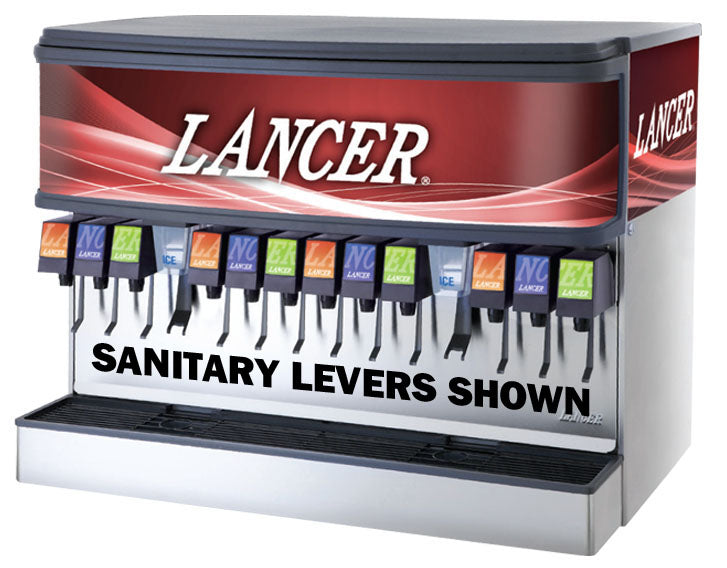

FREE SHIPPING LANCER 44” WIDE 12 DRINK ICE COMBO IBD 4500-44 DISPENSER, SANITARY LEVERS
The IBD is Lancer’s #1 selling self-serve dispenser. Hard plumbed
syrup and water lines deliver excellent icy cold drinks. Versatile
valve configurations and a portion control option allow for easy
beverage cost monitoring. Topped with a compelling wraparound
display, the IBD is a favorite of our customers.

Industry standard platforms in 44” width - 12 valve, lever or push button
dispensing versatility
> Illuminated interchangeable front graphics, 2 standard fluorescent 30 watt light bulbs
> High capacity ice storage bin
> High capacity drip tray to handle customer ice and beverage overfill helps avoid safety
hazards and drink station cleanup from spills
> Unique hex  drive ice agitation and dispense drive system for trouble free operation
and long service life
> Stainless steel construction; exterior and interior
> Fully insulated storage bin and drip tray controls condensation and helps avoid
moisture related safety hazards
> Plumbing access front and rear for installation flexibility
> Dispensing Solutions that Pour More

SPECIFICATIONS

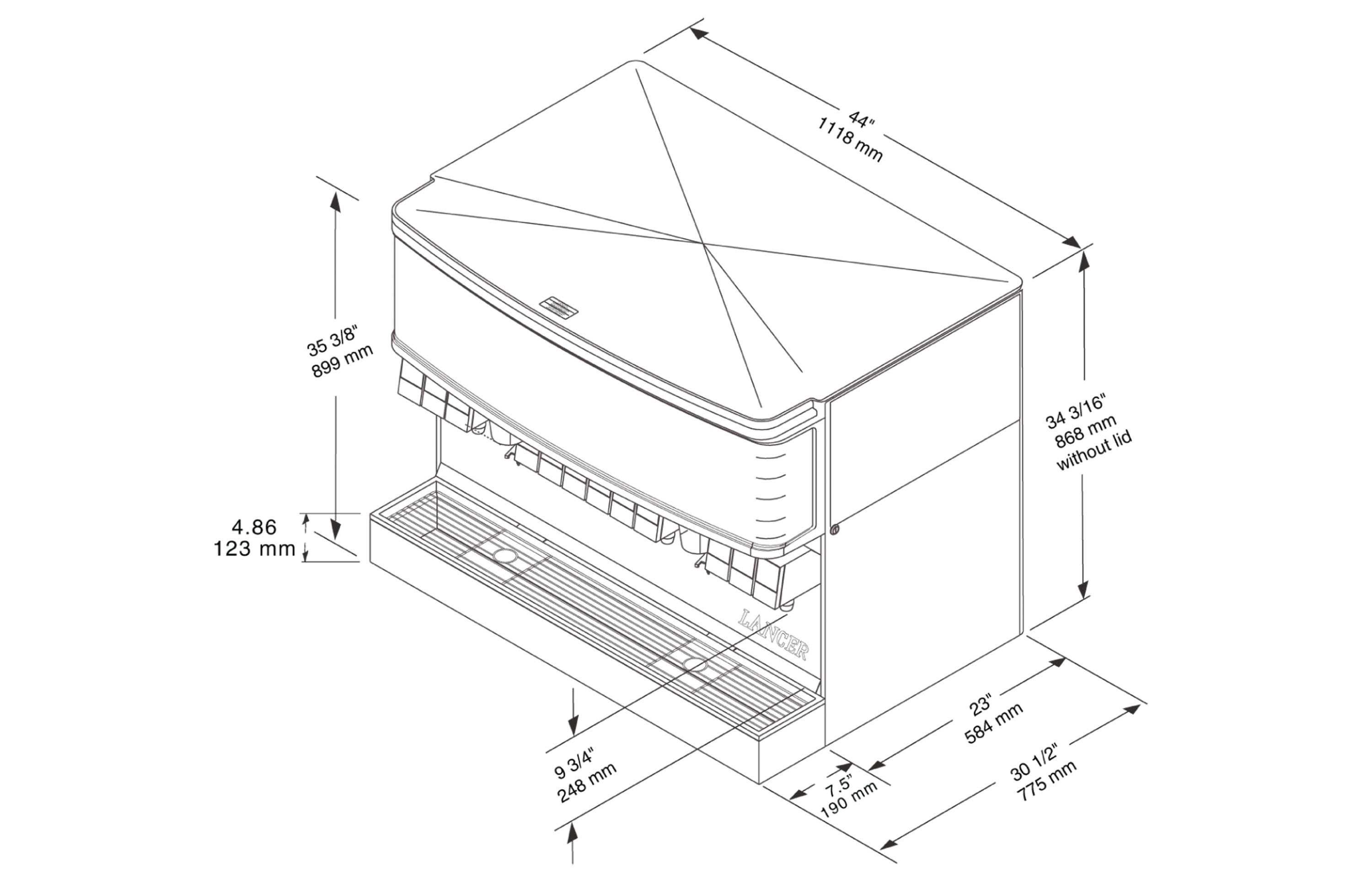

DIMENSIONS
Height: 35.375” (899 mm)
Height with riser 40.625” (1032 mm)
Width: 44” (1118 mm)
Depth: 30.5” (775 mm) including tray
SPACE REQUIRED
Width: 46” (1168 mm)
Depth: 31.5” (800.1 mm)
Height: Allow sufficient clearance for
manually filling with ice or refer to ice maker
recommendation for top clearance.
ELECTRICAL
115V/60Hz
230V/50Hz
WEIGHT
With Ice: 760 lbs (345 kg)
Shipping: 460 lbs (209 kg)
ICE
Capacity: 360 lbs (163 kg)
Dispensable: 300 lbs (136 kg)
FITTINGS
Soda Inlets: 3/8” (9.5mm) male barb
Syrup Inlets: 3/8” (9.5mm) male barb
VALVES
LEV®
Other valves available upon request
Keylock included
