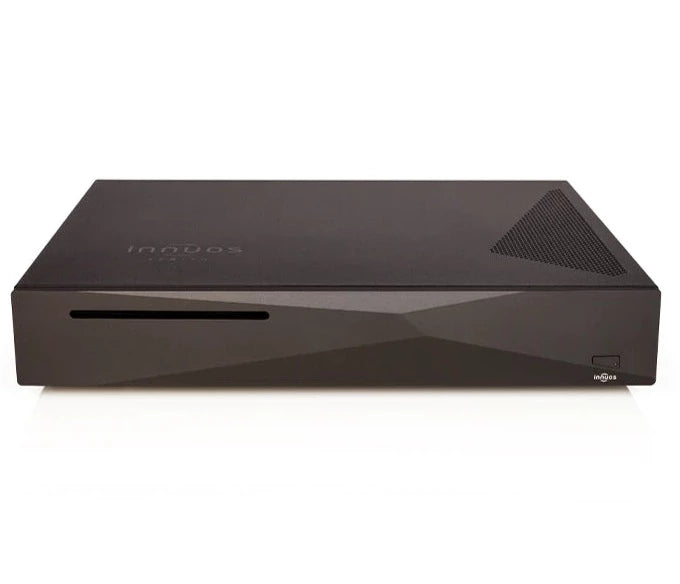

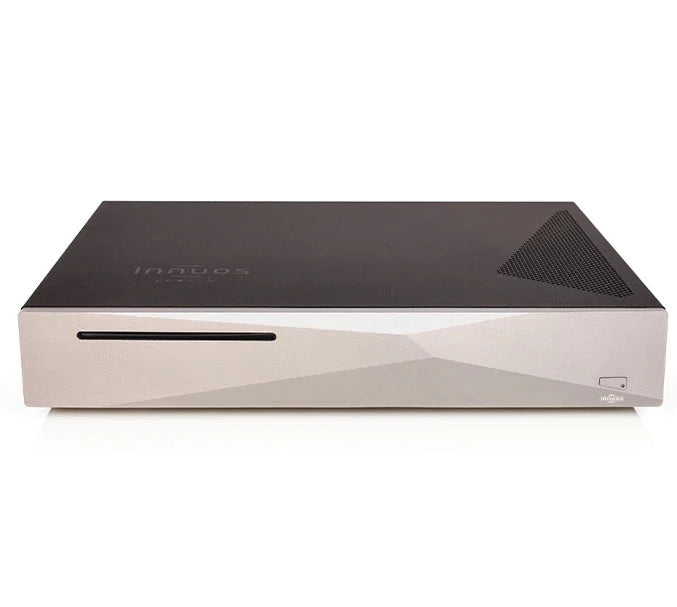

Pushing our popular ZENith even further, the advanced MK3 includes a Triple-Linear PSU with Mundorf CAPS and custom-treated SSD. Ideal for audiophiles who want a smoother, more relaxed sound with a wider soundstage.
Inspired from the high-end power supply engineering of the SE, the ZENith Mk3 benefits from new premium Mundorf capacitors with ultra-low noise regulators and a medical-grade mains filter to provide even greater audio clarity. Our own custom-made Innuos motherboard is completely reworked for optimised audio performance. Sources of EMI have been removed and internal clocks optimised, resulting in a “blacker” music background and enhanced realism. Dual-ethernet ports with isolation transformers provide an ultra-low noise network connection for your streamer, removing noise from the path and improving sound quality on all network audio. New asymmetrical isolation feet derived from our ZENith SE plus added treatment to the chassis help to combat harmful vibration that affect a clean audio signal, with even greater treatment now applied to the SSD. With 4GB dedicated memory, the ZENith loads music directly to memory for playback so that it doesn’t need to engage the SSD during playback, improving sound quality.
Digital Output:
→ USB 2.0 supporting USB Audio Class 2, DoP, Native DSD and MQA
→ Dedicated Ethernet Streamer Port
Ethernet: 2 x rear panel RJ45 - Bridged Gigabit Ethernet
USB: 1x USB 2.0 (DAC), 1x USB 3.0 (Backup)
CD Formats: Red Book
Disc Compatibility: CD, CD-R, CD-RW
Audio format for stored CDs: FLAC (zero compression) WAV
Audio Formats Supported for streaming and playing: WAV, AIFF, FLAC, ALAC, MP3, MQA, (with supported DACs)
Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, DSD64, DSD128, Native DSD up to DSD152 on selected DACs
Bit Depths: 16bit, 24bit, 32bit
Web Interface: Web Browsers from iOS, Android (4.0 and up) or up-to-date Windows and OS X browsers
Mobile: App for iPhone/iPad, Android and Windows 10
CD/DVD drive: TEAC Slot-loading drive
Hard Drive: 1TB SSD with Vibration and EMI treatment
CPU: Intel Quad Core N4200
Memory: 8GB DDR3 Low-Voltage RAM (4GB Dedicated for RAM Playback)
UPnP/DLNA: Integrated UPnP Server
Streaming Services: Qobuz, Tidal, Radio Paradise, Internet Radio
Roon Compatibility: Roon Core and Roon Endpoint
Average CD Storage Time: 5 minutes
CD Metadata: FreeDB, MusicBrainz, Discogs, GD3
Compatible Music Systems:
→ Sonos Multi-room Wireless Music System
→ DLNA/UPnP compatible devices
→ USB DACs complying to USB Audio Class 2
→ USB DACs supporting DSD over DoP protocol
→ Selected USB DACs supporting Native DSD
Network:
→ Internet connection to access album metadata storing CDs, Internet Radio, Streaming Services and software updates
→ Network router with at least one available ethernet port
→ Premium subscription required for some streaming services such as Spotify, Qobuz and Tidal
Recommended App (USB Connection Only): iPeng 9 (iOS), OrangeSqueeze (Android), Squeeze Control (Windows 10)
Mains Supply: 230V AC / 115V AC - Internal Dual-Linear Power Supply
Power Consumption: 12W when idle, 15W peak
Dimensions: 420mm x 340mm x 83mm (W x D x H)
Weight: 9Kg
→ Innuos ZENith Mk3 1TB Music Server
→ Mains Cable
→ 2m Ethernet Cable
→ Getting Started leaflet
