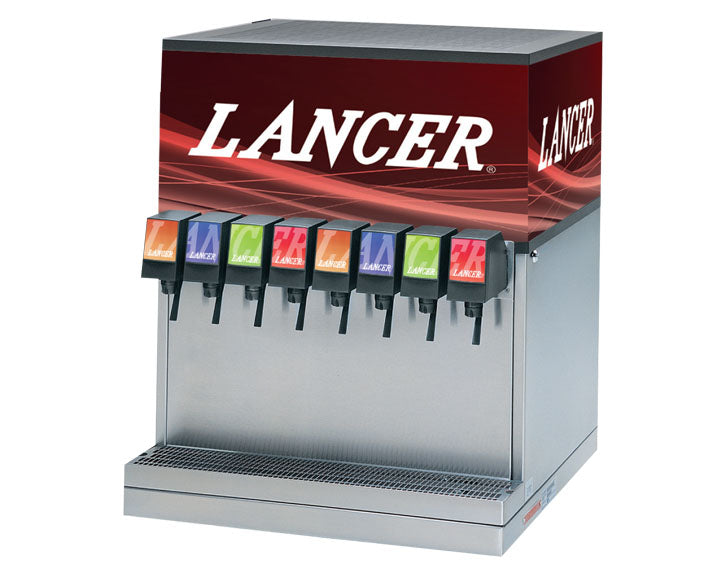

FREE SHIPPING LANCER COUNTER ELECTRIC HI PERFORMANCE 8 VALVES MODEL 2500 DISPENSER
The CED 2500 is designed using the highest quality
materials and proven technology providing our customers
with consistent drink quality.

> Stainless steel cabinet, water bath, product lines, and drip tray assembly;
removable refrigeration deck
> Available with 8 post-mix dispensing valves
> All valves can be serviced independently
> Insulation is CFC-free structural foam
> All installation from front of unit
> CFC-free, R134A refrigerant
> Optional lighted front marquee kit and leg kit
> Standard capacity 3/4 hp, 55 lb ice bank, flooded manifold
> Flex manifold configuration for multiple non-carbonated drinks
> Dispensing Solutions that Pour M ore

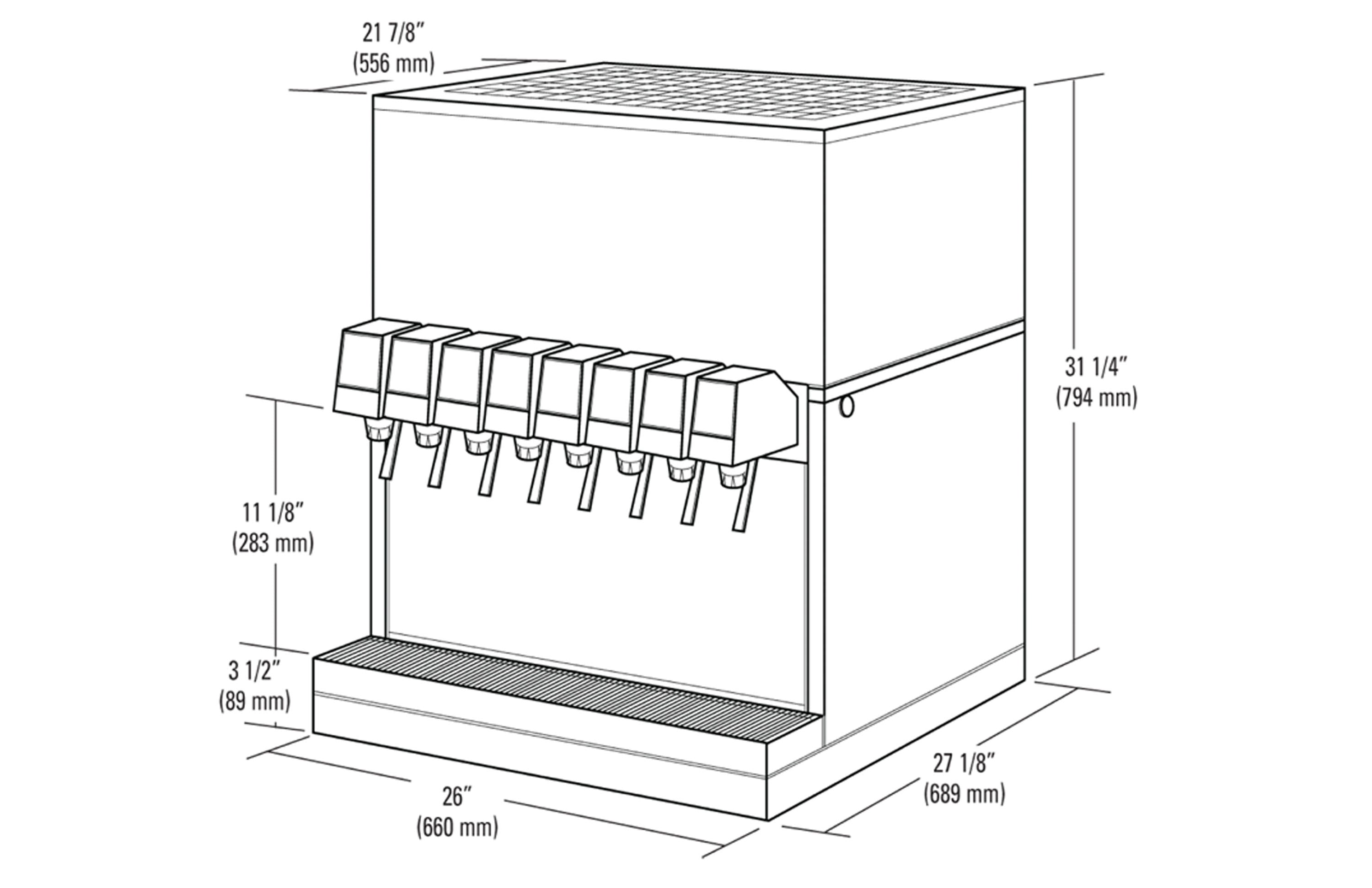

DIMENSIONS
Height: 31.25” (794 mm)
Width: 26” (660 mm)
Depth: 27.125” (689 mm)
ELECTRICAL
115V/60Hz, 7.5AMPs
230V/50Hz, 4.3AMPs
WEIGHT
Empty: 209 lbs (95 kg)
Operating: 376 lbs (171 kg)
Shipping: 257 lbs (117 kg)
ICE
Capacity: 55 lbs (25 kg)
FITTINGS
Soda Inlets: 3/8” male barb
Syrup Inlets: 3/8” male barb
VALVES
LEV® and other valves available upon request
FLEX MANIFOLD CONFIGURATION
8 valve 3-1-1-3
KEY LOCK SWITCH
COMPRESSOR
3/4 hp
MOTORS
Agitator: 25 w
Condenser Fan: 35 w
ICE BANK CONTROL
Lancer Electronic Ice Bank Control
TRANSFORMER
24 V Secondary
WATER
Capacity: 21 gal (80 L)
