FREE SHIPPING LANCER 30” WIDE 8 DRINK ICE COMBO IBD 4500-30 DISPENSER, SANITARY LEVER
The IBD is Lancer’s #1 selling self-serve dispenser. Hard plumbed
syrup and water lines deliver excellent icy cold drinks. Versatile
valve configurations and a portion control option allow for easy
beverage cost monitoring. Topped with a compelling wrap around
display, the IBD is a favorite of our customers.

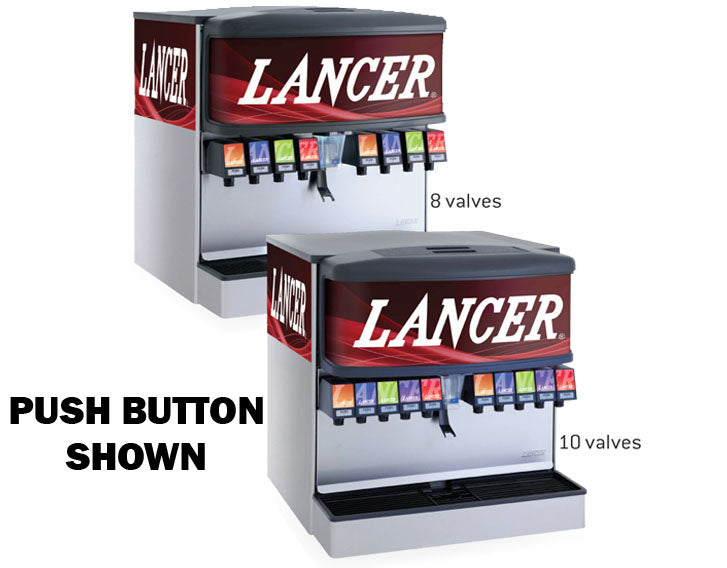

> Industry standard platforms in 30” width - 8 or 10 valve, lever or push button
dispensing versatility
> Illuminated interchangeable front graphics, standard fluorescent 15 watt light bulb
> High capacity ice storage bin
> High capacity drip tray to handle customer ice and beverage overfill helps avoid safety
hazards and drink station cleanup from spills
> Unique hex drive ice agitation and dispense drive system for trouble free operation and
long service life
> Multiple valve configurations available for self-serve and portion control operation to
control beverage costs
> Stainless steel construction; exterior and interior
> Fully insulated storage bin and drip tray controls condensation and helps avoid
moisture related safety hazards
> Plumbing access front and rear for installation flexibility
> Dispensing Solutions that Pour More

SPECIFICATIONS

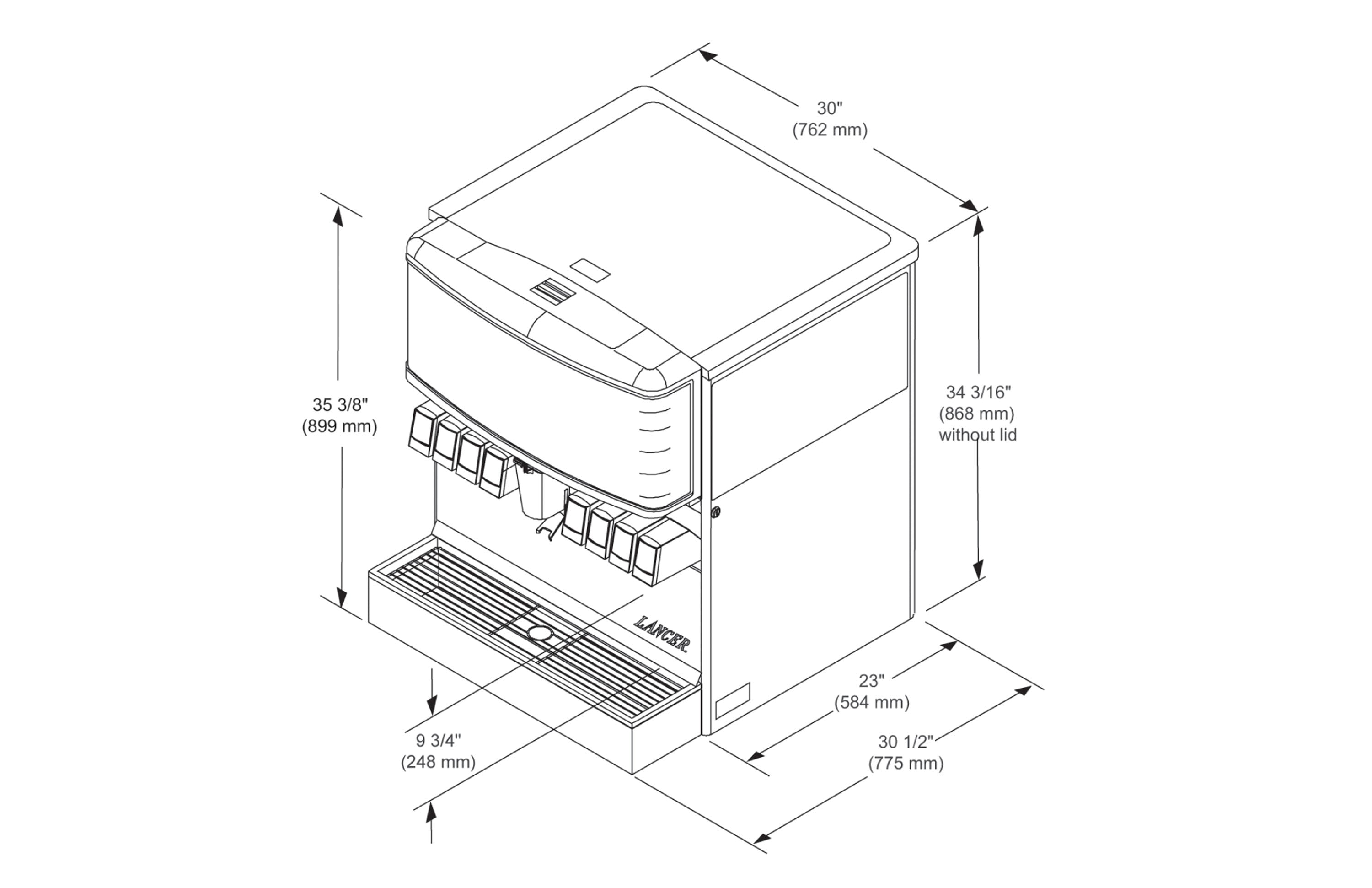

DIMENSIONS
Height: 35.375” (899 mm)
Height with riser 40.625” (1032 mm)
Width: 30” (762 mm)
Depth: 30.5” (775 mm)
SPACE REQUIRED
Width: 32” (812.8 mm)
Deep: 31.5” (800.1 mm)
Height: Allow sufficient clearance for
manually filling with ice or refer to ice maker
recommendation for top clearance.
ELECTRICAL
115V/60Hz
230V/50Hz
WEIGHT
With Ice: 525 lbs (238 kg)
Shipping: 305 lbs (138 kg)
ICE
Capacity: 250 lbs (113 kg)
Dispensable: 175 lbs (79 kg)
FITTINGS
Soda Inlets: 3/8” male barb
Syrup Inlets: 3/8” male barb
VALVES
LEV® other valves available upon request
FLEX MANIFOLD CONFIGURATION
8 Valve: 3-1-1-3
10 Valve: 3-1-2-1-3
KEY LOCK SWITCH
(Note: specifications are the same for 8 and 10 valve)
