FREE SHIPPING LANCER 25” WIDE 8 DRINK ICE COMBO IBD 4500-25 DISPENSER, SANITARY LEVER
The IBD is Lancer’s #1 selling self-serve dispenser. Hard plumbed
syrup and water lines deliver excellent icy cold drinks. Versatile
valve configurations and a portion control option allow for easy
beverage cost monitoring. Topped with a  compelling wraparound
display, the IBD is a favorite of our customers.

> Industry standard platforms in 25” width - 8 valve,
lever or push button dispensing versatility
> Illuminated interchangeable front graphics, standard fluorescent 15 watt light bulb
> High capacity ice storage bin
> High capacity drip tray to handle customer ice and beverage overfill helps avoid
safety hazards and drink station cleanup from spills
> Unique hex drive ice agitation and dispense drive system for trouble free operation
and long service life
> Multiple valve configurations available for self-serve and portion control operation
to control beverage costs
> Stainless steel construction; exterior and interior
> Fully insulated storage bin and drip tray controls condensation and helps avoid
moisture related safety hazards
> Plumbing access front and rear for installation flexibility
> Dispensing Solutions that Pour More

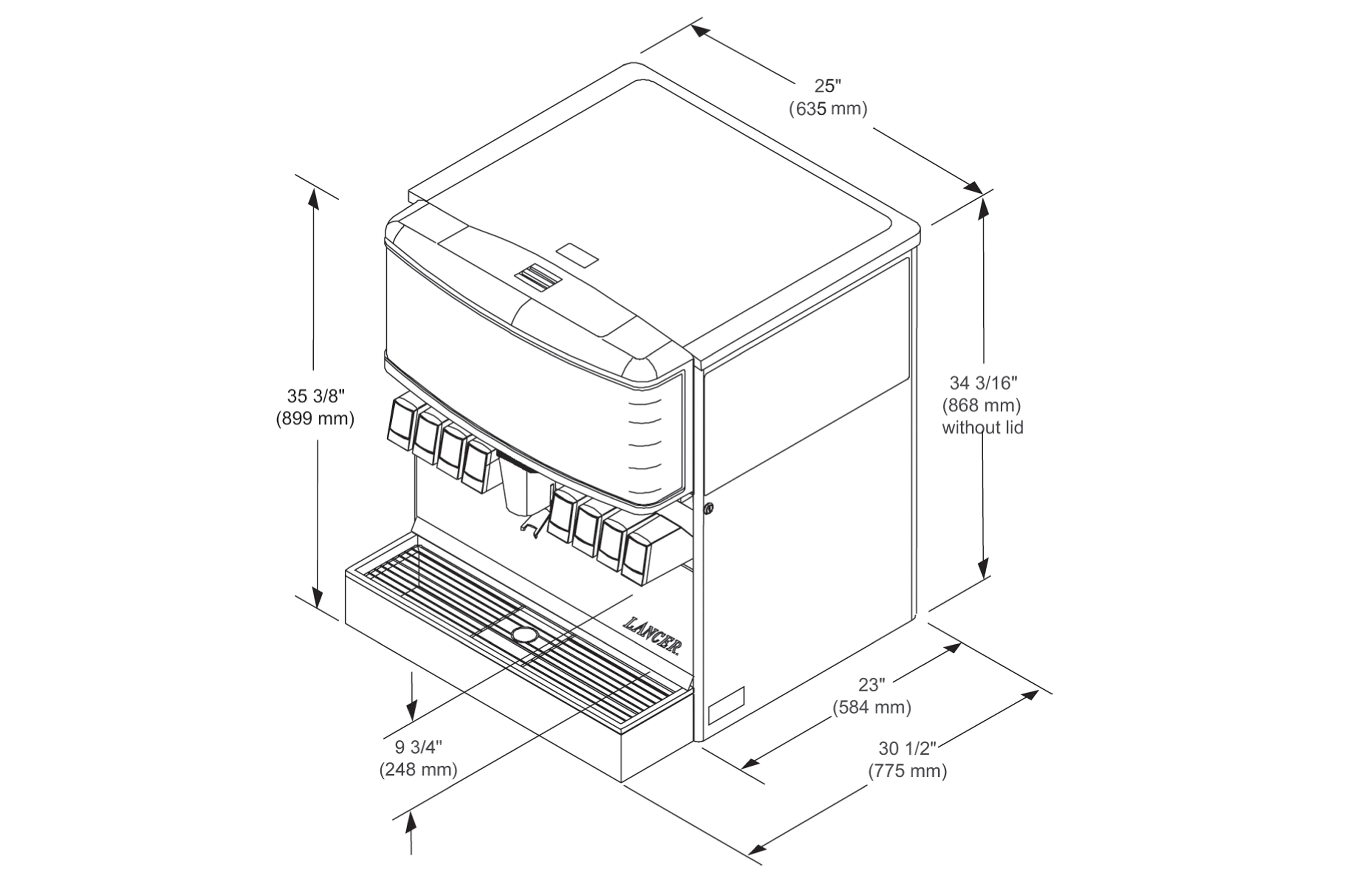

SPECIFICATIONS
DIMENSIONS
Height: 35.375” (899 mm)
Height with riser 40.625” (1032 mm)
Width: 25” (635 mm)
Depth: 30.5” (775 mm)
SPACE REQUIRED
Width: 25” (635 mm)
Deep: 30.5” (775 mm)
Height: Allow sufficient clearance for
manually filling with ice or refer to ice maker
recommendation for top clearance.
ELECTRICAL
115V/60Hz, 3AMPs
230V/50Hz, 1.5 AMPs
WEIGHT
With Ice: 460 lbs (208 kg)
Shipping: 290 lbs (132 kg)
ICE (cube)
Capacity: 205 lbs (93 kg)
Dispensable: 160 lbs (68 kg)
FITTINGS
Soda Inlets: 3/8” male barb
Syrup Inlets: 3/8” male barb
VALVES
LEV® other valves available upon request
FLEX MANIFOLD CONFIGURATION
3-1-1-3
KEY LOCK SWITCH
